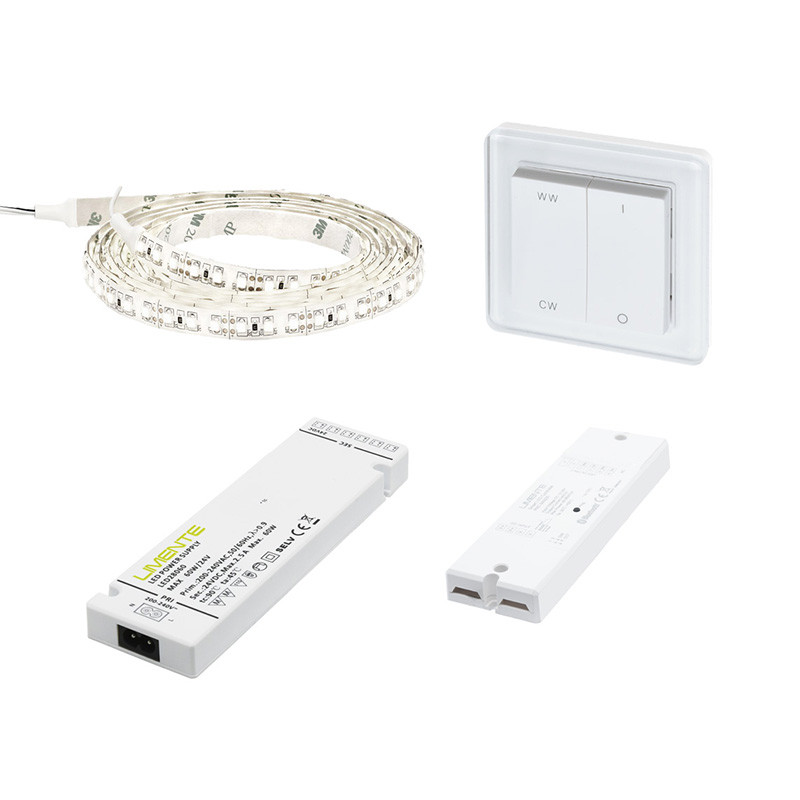

KIT-CCT 4m, driver+dimmer

CCT-set with driver and wireless lighting control with color temperature adjustment

LIMENTE RIBBON IP44 CCT LUX is a part of LIMENTE CCT collection, which is not only dimmable but the color temperature is adjustable. When adjusting the color temperature of lighting in your home, you can change the ambience to suit any mood. RIBBON IP44 CCT LUX is an efficient led strip with LEDs very close to each other (196 LEDs / m). You can use RIBBON either in a kitchen as working light or as indirect light behind mirrors, in plinths, in ceilings, and in any space, where the light source needs to be as invisible as possible. The light is stylish and continuous as well as pleasantly even especially when installed on LIMENTE LIGHT PROFILE.

LIMENTE RIBBON IP44 CCT LUX is available in standard lengths of 2 and 4 meters. The led strip can be shortened to a desired length at 6,6 cm intervals. LIMENTE RIBBON IP44 CCT LUX comes with quality LEDs with a color rendering index of CRI> 90, an efficiency of 105 lm/W, a luminosity of 683 - 1505 lm/m and a color temperature of about 2700-6000K. The fixture includes a matte protective glass diffuser, which makes the light even and continuous and makes the light a bit warmer in color temperature. All technical values are given to the led strip without a diffuser.

There is a 150cm + 150cm long power cord at each end of the fixture. An extension cord (3m, no. 681588) can be ordered, in case a longer power cord is needed. Extension cords can be fitted with a maximum on 1 pcs of fixtures, with a maximum cord length of up to 6m. A power supply cable at both ends of the fixture enables LIMENTE RIBBON IP44 LUX to be used as two separate lights.

Adjusting the lights

By adjusting the lights, you can always customize the lighting and create the right lighting for your home. By dimming the LIMENTE lights, you change the lighting in your home from efficient and bright to dim and cozy. If you wish, you can use the same switch to adjust all the LIMENTE lights in the room, including the various ceiling, panel and working lights. The lights adjust evenly, smoothly and simultaneously, changing the atmosphere of the entire space at once. With the LIMENTE SMART dimmer, you can continuously adjust the light output of the LIMENTE LED lights from 0 to 100%.

LIMENTE RIBBON IP44 CCT LUX requires the dimmer LIMENTE SMART 561 (no. 640561) and the wireless wall switch (no. 640560) to use and which are included in the set. The controller has an on / off function and dimming. On / Off works with a short press and a long press dims / brightens the light.

The LIMENTE SMART 560 is a wireless 24 V CCT dimmer that is installed between the power supply and the lights. The dimmer has the same connector as the power supply and the same connectors as the 24 V CCT lights. A maximum of 6 luminaires can be installed in the manifold. 1 dimmer is required for each light group (power supply). The LIMENTE SMART 560 CCT dimmer unit can be used with all 24 V LIMENTE CCT lights.

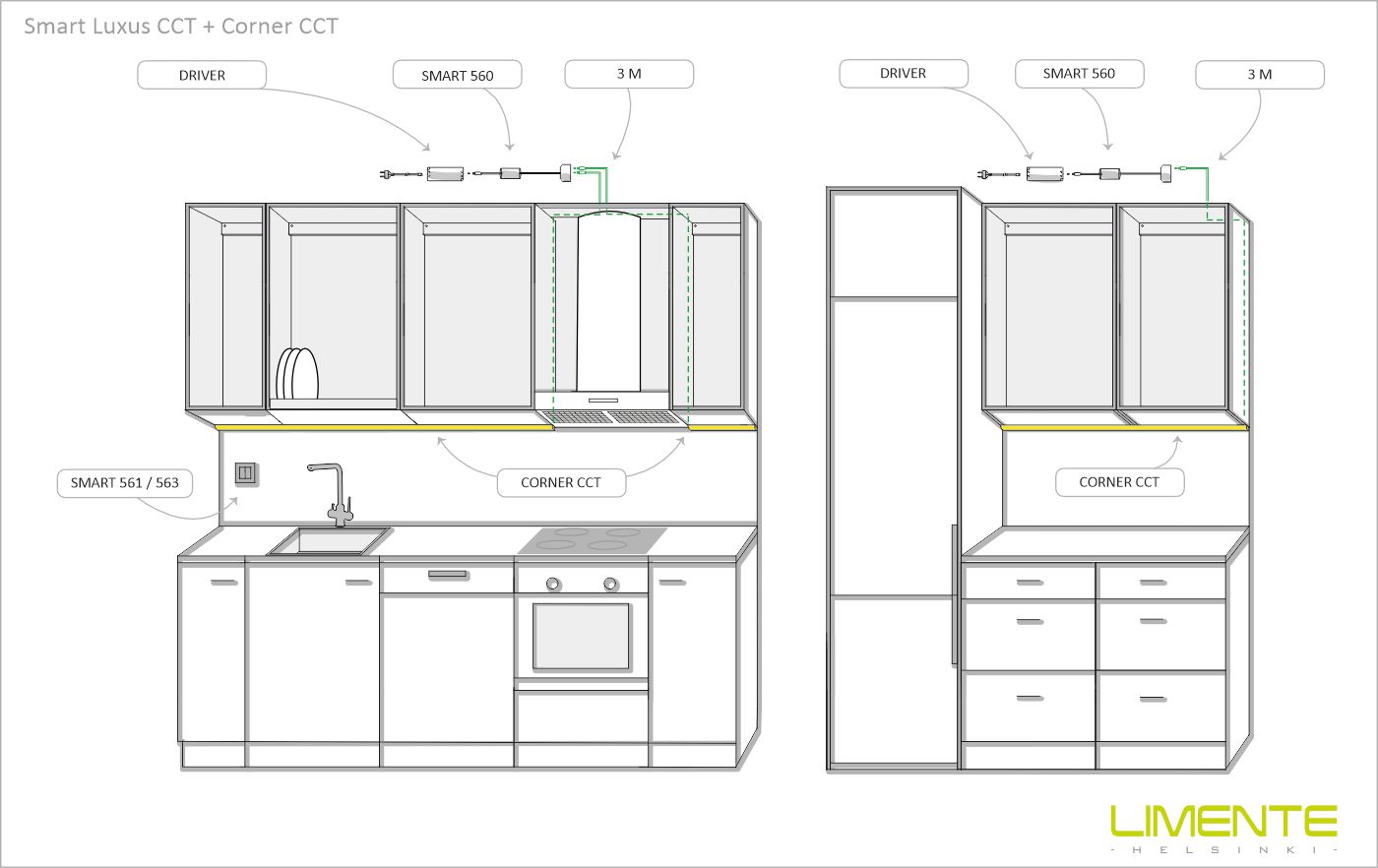

Installation and pairing is simple and quick. Often, the socket is on top of the kitchen cabinet, in which case the dimmer section is also placed there. The CCT dimmer part is placed between the power supply and the lights using the easy plug and socket connectors. The stylish wall switch (controller) is then mounted at the desired location on the wall. The controller and dimmer unit should be paired and then the system is ready for use.

If you need more dimmers or controls, you should also pair them with each other. With pairing, the dimmer recognizes the signal sent by the controller, making the system ready for use. Pairing is a simple and quick operation that also has clear instructions on our Youtube channel. At least one dimmer is required for each power supply. Note this if you want to control the lights behind more than one power supply with the same control.

Installation
