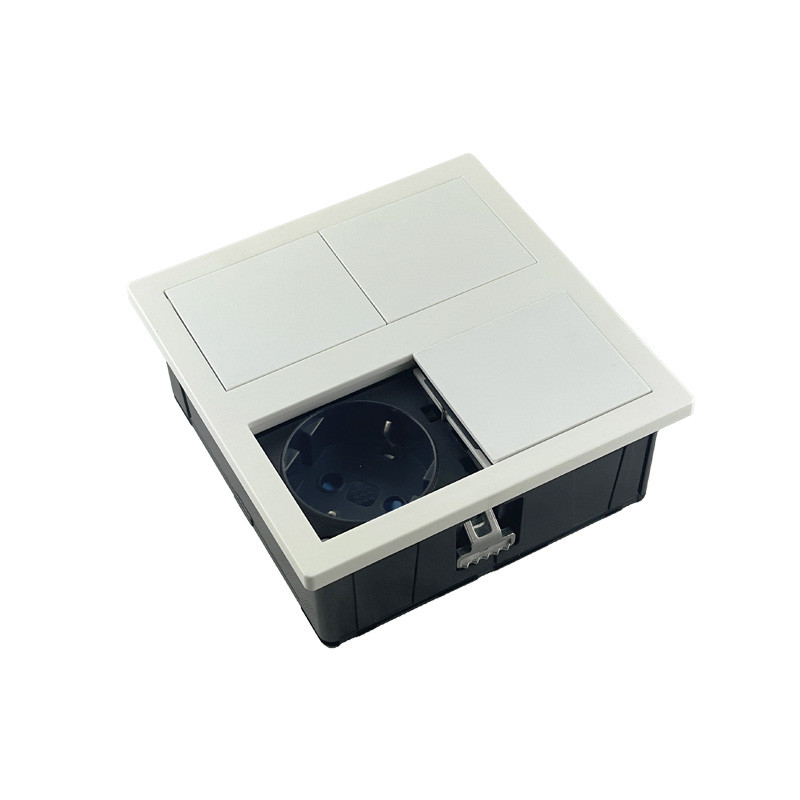

DUOLITE socket | white

Slim recessed socket

The DUOLITE is an extremely low power designed to be installed on tabletops, shelves and other furniture. Due to its small and low design DUOLITE can also be used in separate, loose furniture, such as tables, couches or bookshelves.

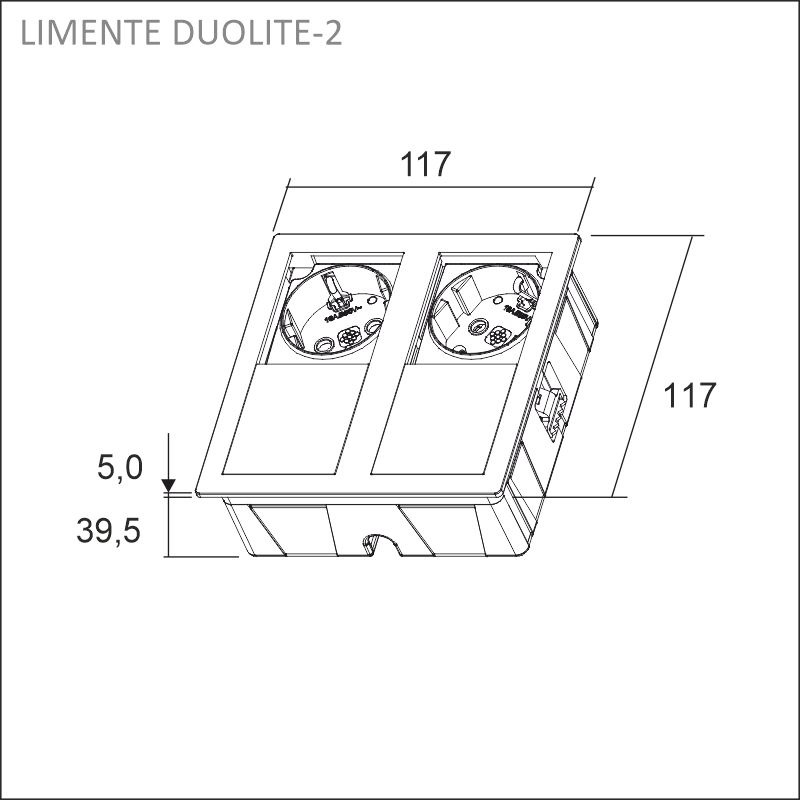

The DUOLITE has two sockets. You can either use the sockets separately or at the same time. When only one of them is in use, the other is covered from crumbs and litter. When closed, the surface of the DUOLITE socket rises only 5 mm from the level. DUOLITE has a classification of IP54 and can be used in humid conditions.

Color options

DUOLITE is made of plastic and is available in black and white.

Installation

DUOLITE is quick and easy to install.

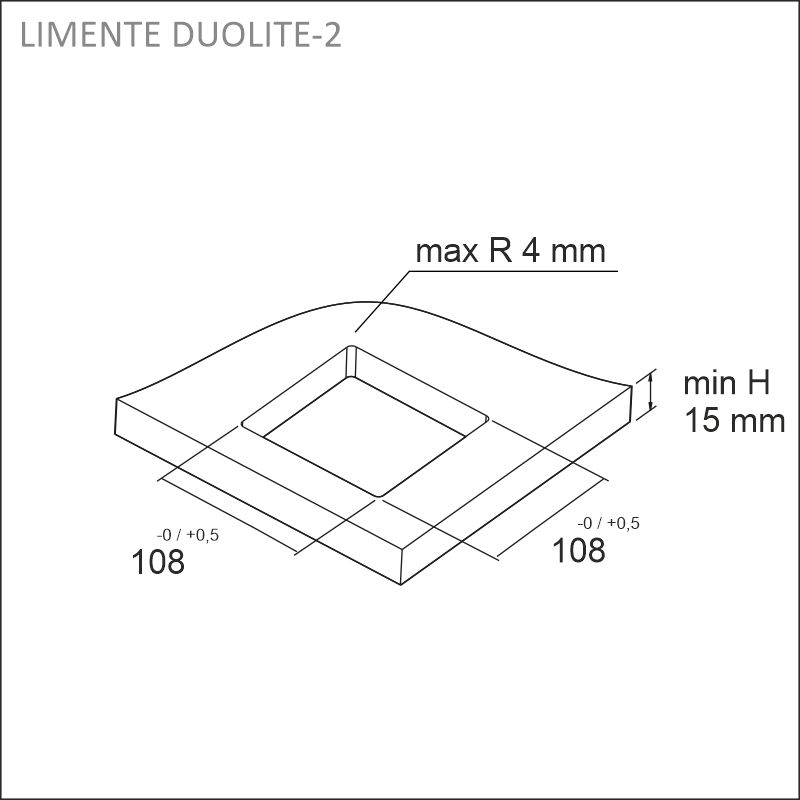

The socket must be installed on a surface with a material thickness of at least 15 mm. There is no upper limit to the material thickness if it is a wooden surface, but if it is a stone or glass surface, the material thickness must be between 15mm-20mm. Make a square hole in the tabletop or kitchen island, into which the power socket is attached with integrated attachment brackets. Duolite-socket includes a fixed 2m cord and a detachable plug. To facilitate installation and cable routing, the plug is supplied separately and attached at the installation site.

If the outlet, to which DUOLITE is connected, is connected to a 10 A fuse, that’s also the maximum load of DUOLITE. If the fuse is 16 A, is the maximum load of DUOLITE also 16 A.
