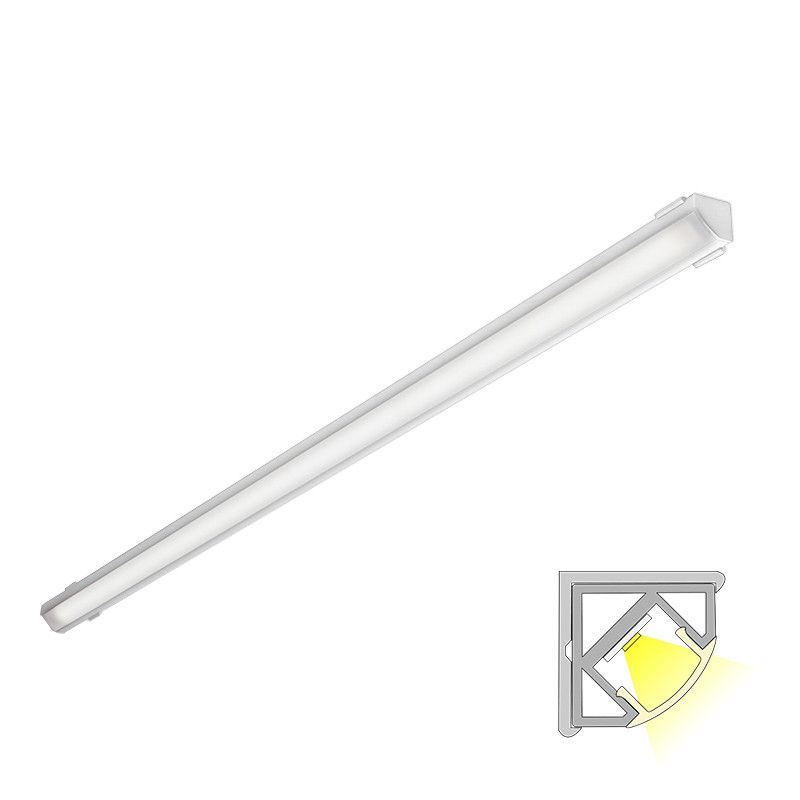

LIMENTE CORNER CCT LUX 2700 - 6000 K, IP44, white | 1500 lm/m, CRI>90

A versatile corner profile fixture with color temperature adjustment

LIMENTE CORNER IP44 CCT is a part of LIMENTE CCT collection, which is not only dimmable but the color temperature of the light is also adjustable. When adjusting the color temperature of lighting in your home, you can change the ambience to suit any mood. LIMENTE CORNER IP44 CCT is a versatile light fixture suitable for either working light or mood light. The fixture can be used in any space, where the fixture can be placed in a corner. The light is stylish and continuous with no connection points interrupting the light, which provides even light throughout the area.

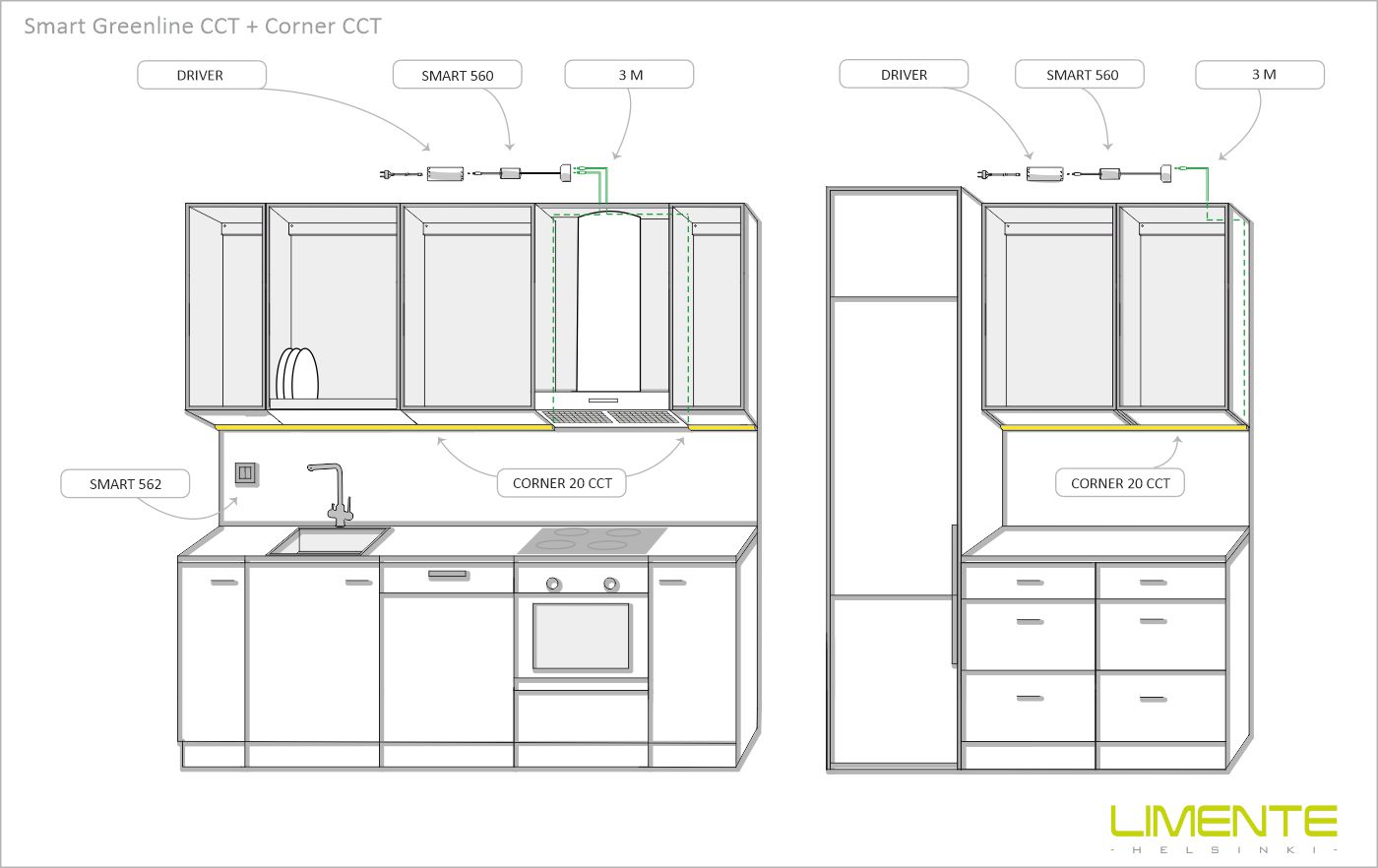

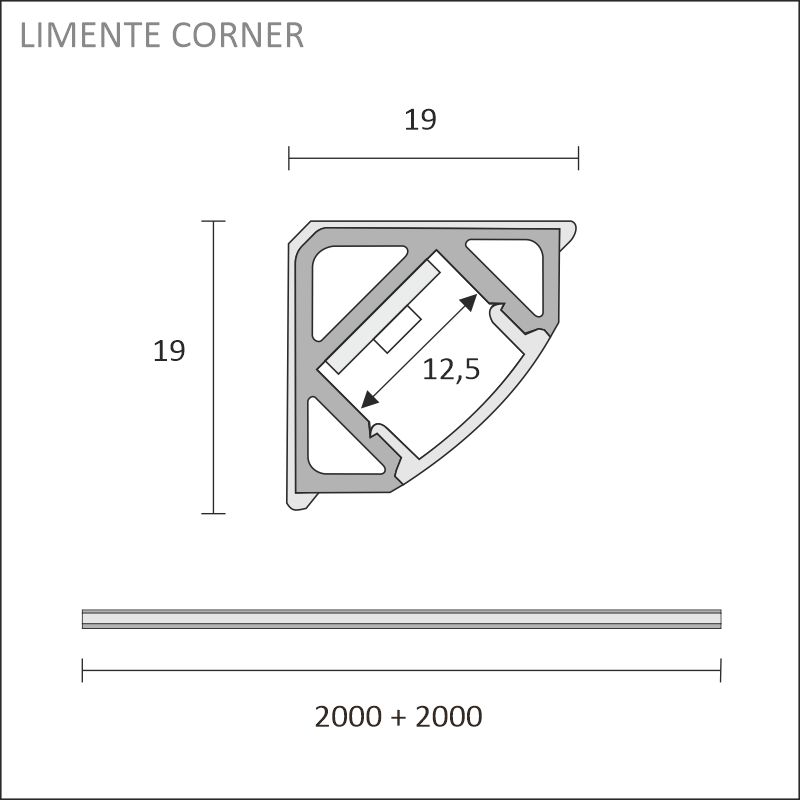

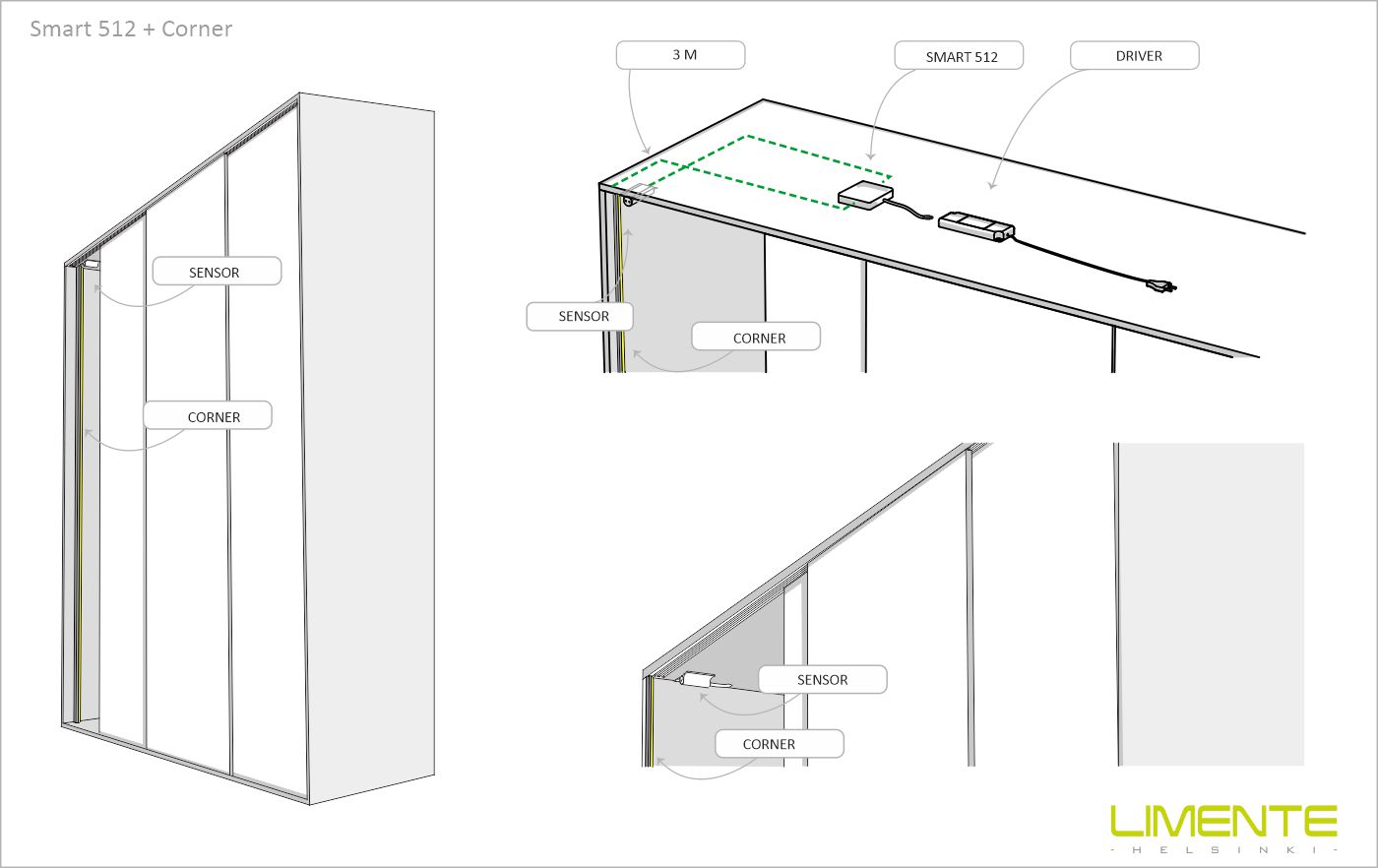

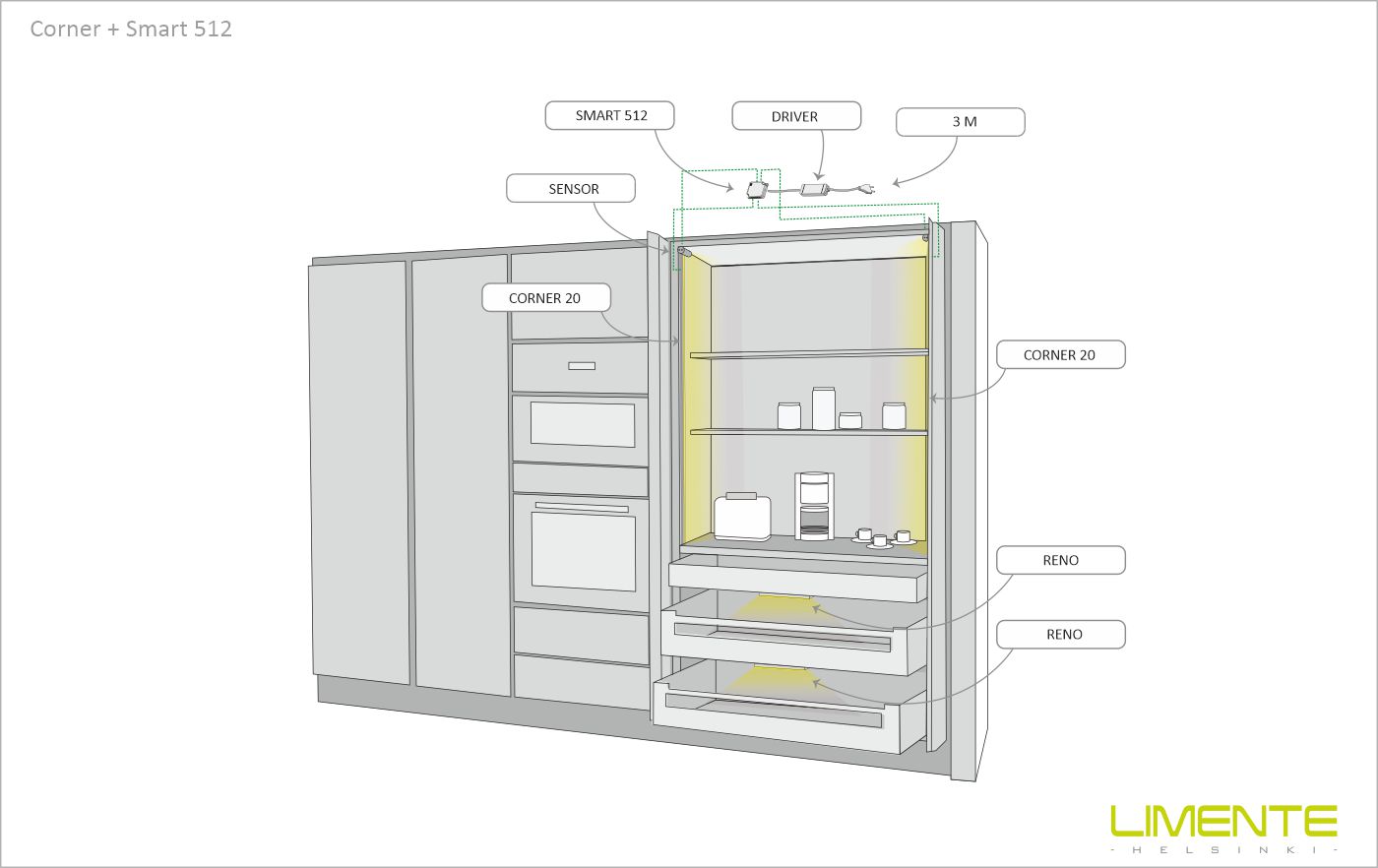

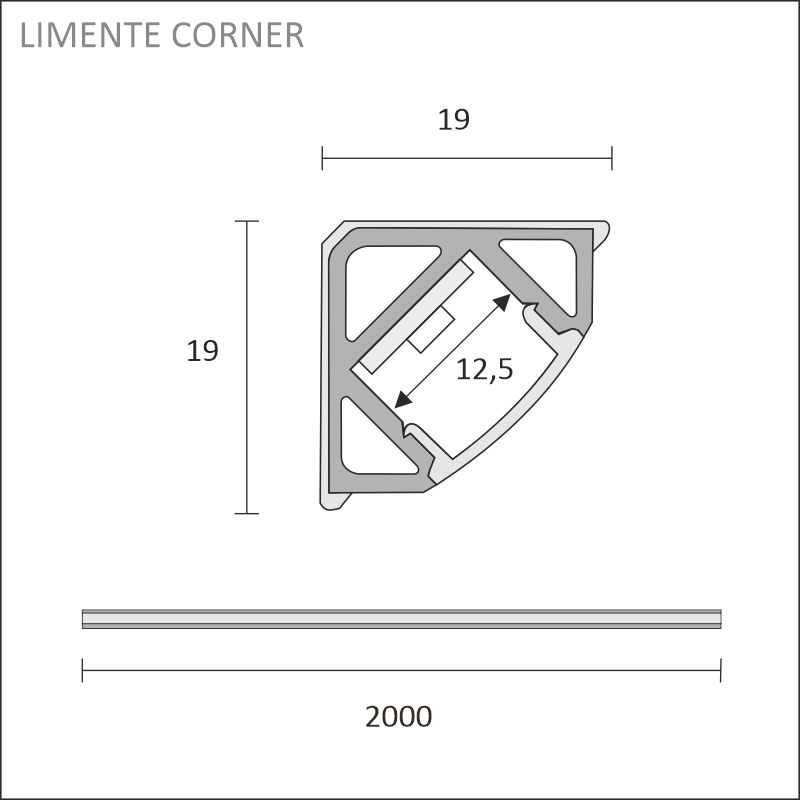

See ”Installation pictures” for tips on how to use CORNER IP44 CCT in a kitchen workspace but also to provide indirect lighting when placed above upper cabinets, in plinths, in ceilings or inside a wardrobe! LIMENTE CORNER profiles are available in three amazing colors (aluminium, black, white), in multiple lengths (2-6m) and three different color temperatures (3000K, 4000K and 2700K-6000K). The aluminium profile itself has a standard lenght of 2m, black 2,15 m and can be shortened to a desired length.

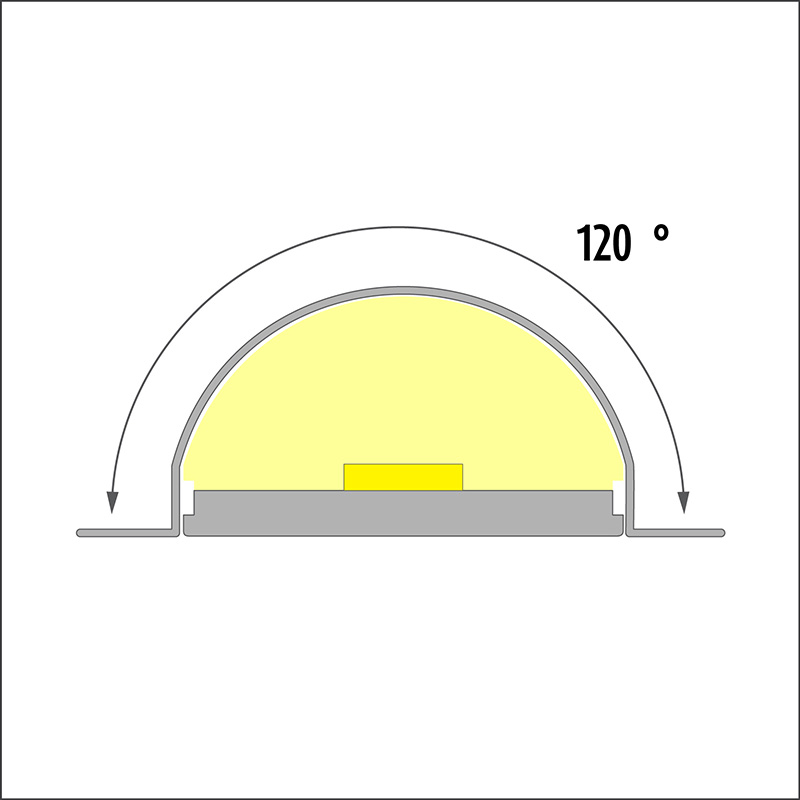

LIMENTE CORNER IP44 CCT is available in standard lengths of 2 and 4 meters. The fixture can be shortened to a desired length at 6,6 cm intervals. LIMENTE CORNER IP44 CCT comes with quality LEDs with a color rendering index of Ra> 90, an efficiency of 105 lm/W, a luminosity of 683 - 1505 lm/m and a color temperature of about 2700-6000K. The fixture inludes a matte protective glass diffuser, which makes the light even and continuous and makes the light a bit warmer in light color. All technical values are given to the led strip without a diffuser.

In addition to LIMENTE CORNER IP44 CCT, LIMENTE CORNER is available in two different versions: the standard version LIMENTE CORNER IP44 (IP44, Ra>85, 4000K) and LUX version LIMENTE -CORNER IP44 LUX (IP44, Ra>90, 3000K and 4000K).

To use LIMENTE CORNER IP44 CCT, you’ll need a suitable 24V power supply. Compatible products are mentioned alongside the product. The profile, the led strip and the power supply are also sold separately. N.B.! The power supply must be ordered separately.

Dimming and lightcontrol

Appropriate lighting for any occasion is made easy with our dimming and lighting control system. You can easily change the lighting and ambience in your home from efficient and bright to dim and cozy by dimming your LIMENTE CORNER CCT with our wireless system. You can use the same switch to adjust all the LIMENTE CCT lights in the room. The light and color temperature adjust smoothly at the same time while creating ambience for working, entertaining or any mood in between.

LIMENTE CORNER IP44 CCT requires the dimmer LIMENTE SMART 560 (no. 640560) and the wireless wall switch (no. 640561 and 640562) from our LIMENTE SMART series to use.

The dimmer is installed between the power supply and the fixture. The dimmer includes a similar manifold to the one included in the power supply. You can connect up to 6 LIMENTE lights to one dimmer, as long as the maximum load (W) of the power supply is not exceeded.

Installation

LIMENTE CORNER IP44 CCT is fast and easy to install with the installation tools included.

The power supply cable is put in place (e.g. hidden behind a cabinet) so that the male connector comes close to the power supply and the female connector comes near the CORNER profile. A power supply cable at both ends of the fixture enables CORNER IP44 CCT to be used as two separate lights. The fixture can be shortened to a desired length at 6,6 cm intervals. There is a 5cm + 300cm long power cord at each end of the fixture. An extension cord (3m, no. 66110) can be ordered, in case a longer power cord is needed. Extension cords can be fitted with a maximum on 1 pcs of fixtures, with a maximum cord length of up to 6m. Please note the adequate length of the cord and the maximum load (W) of the power supply.

CORNER IP44 CCT can also be used in its full length (2 or 4 m). When wanting to use the whole length, simply cut off the power supply cable at the other end.

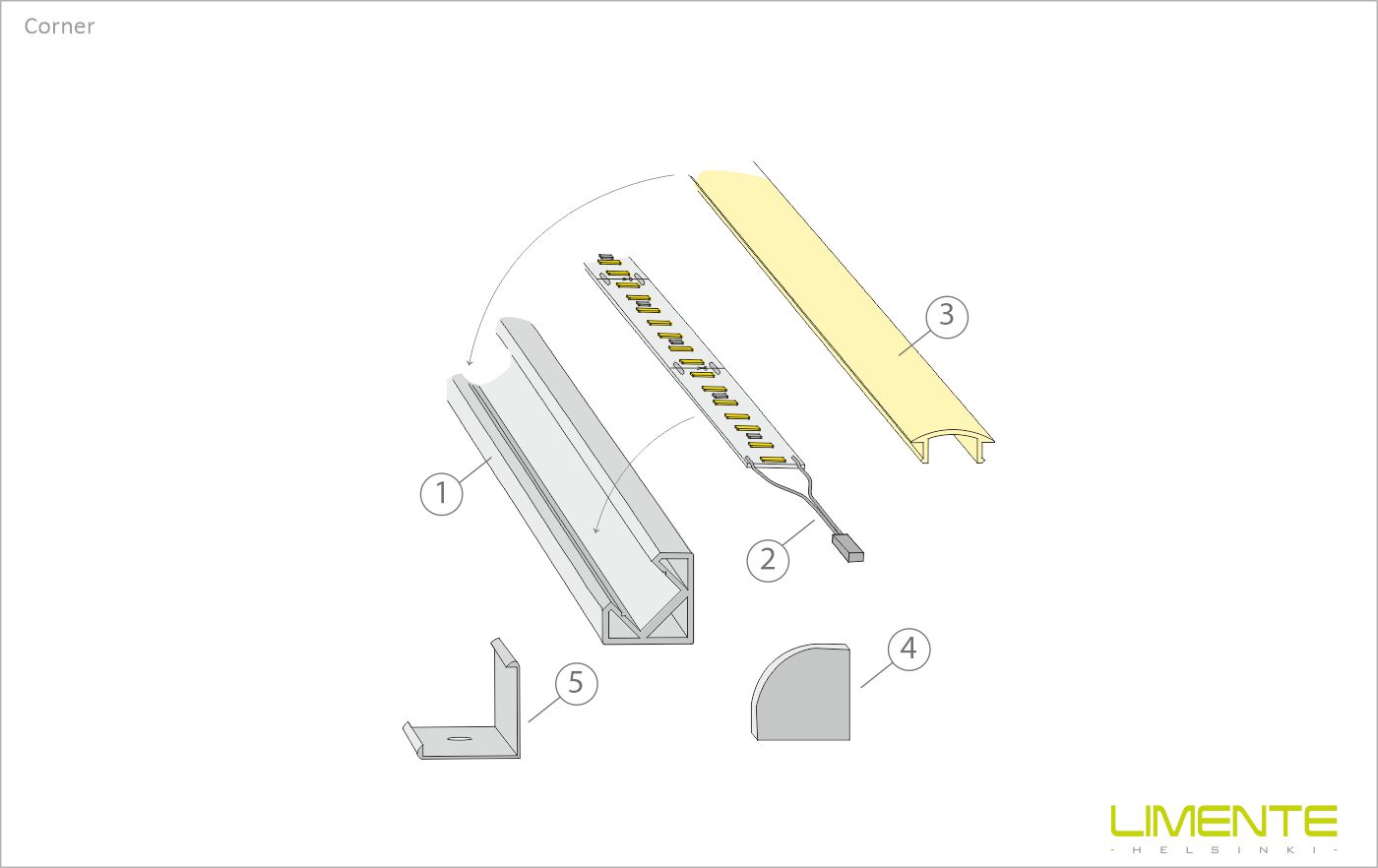

When installing, cut the profile into the desired length and attach in place with the installation tools and clips included. Remove the double-sided tape from the light strip and press onto the profile. Finally, connect the power supply cable to the light strip and to the power supply. All electrical connections are done with quick connectors.
