LIMENTE PROFIL LUX-IR 4000 K, IP44, aluminium | 1100 lm/m, CRI>95

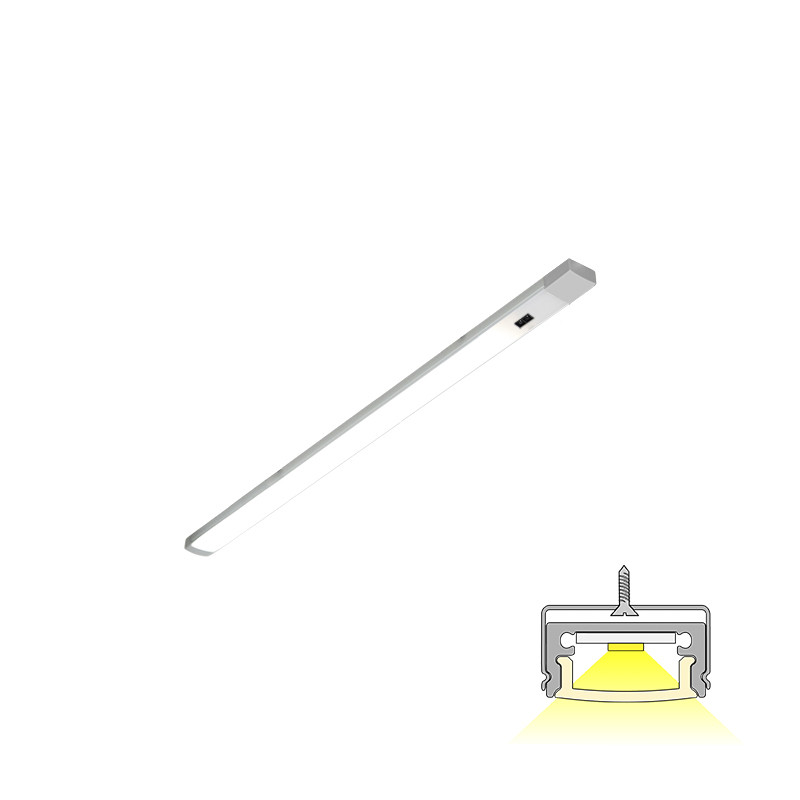

An extremely low and efficient profile fixture with an IR switch

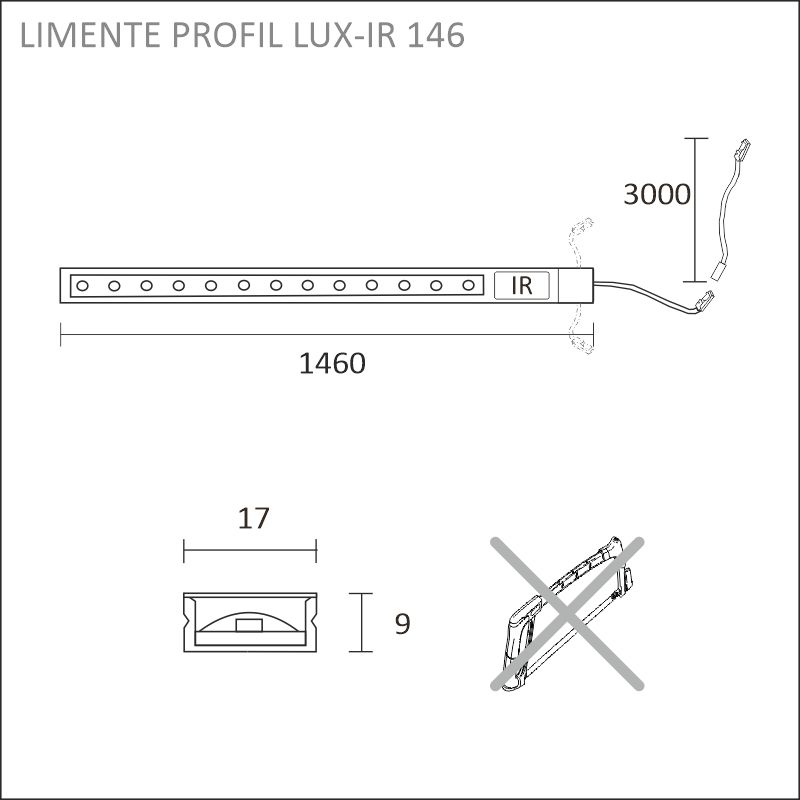

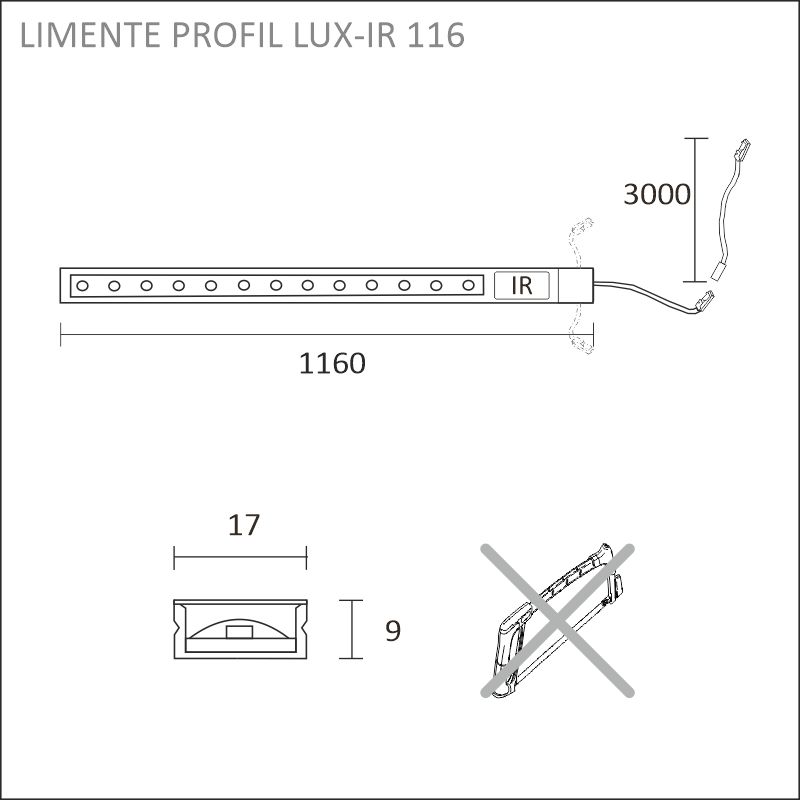

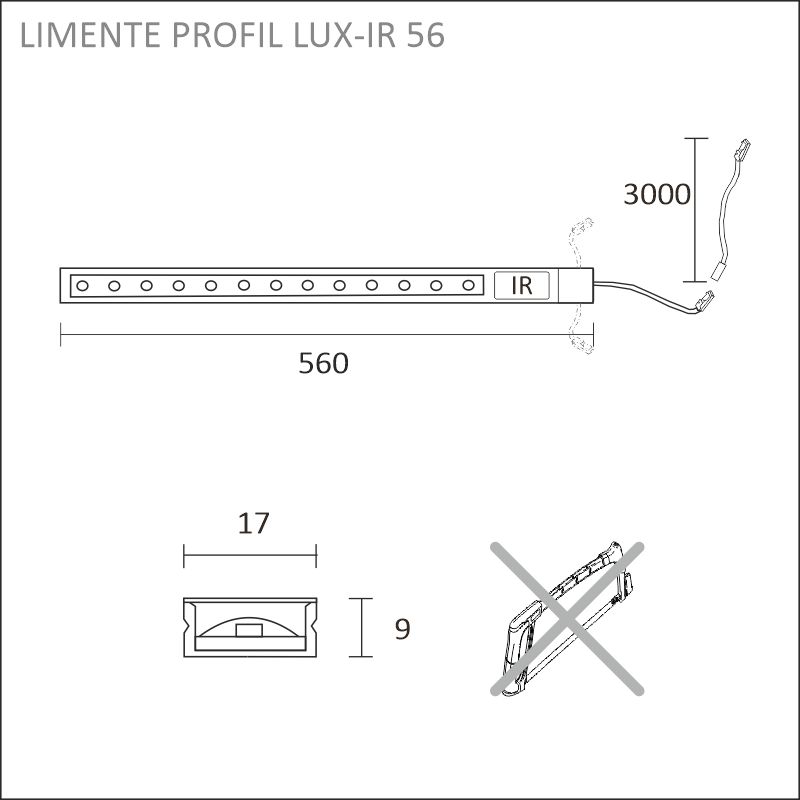

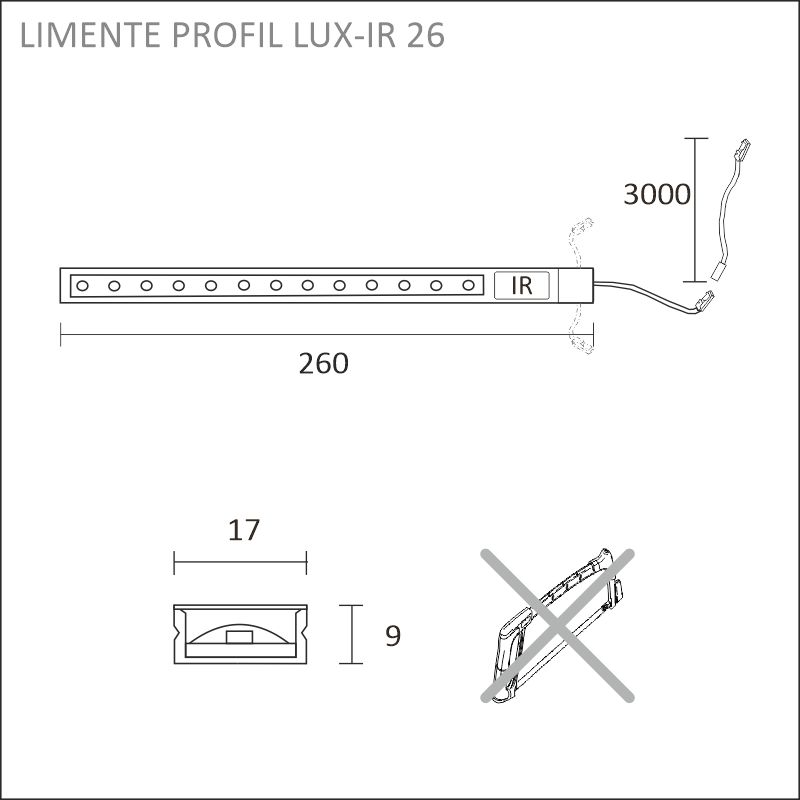

LIMENTE PROFIL LUX-IR is a part of LIMENTE LUX collection.The LIMENTE LUX collection provides the best quality of light in technical features, such as efficiency and color rendering, and maximizes the lifespan of the product. PROFIL LUX-IR is a simple and cost-efficient choice to light up your kitchen! The led profile is available in five different standard lengths. The fixture has an IP44 classification, which makes it possible to be installed under a drying cabinet. Due to the excellent light output, the profile fixtures can be placed even 60-80cm apart! You’ll receive excellent light on your cooktop, when the fixtures are placed on both sides of the cooker hood.

LIMENTE PROFIL LUX-IR has a perfect color rendering (Ra>90). The fixture has a light output of 1100 lm/m and a color temperature of 4000K. Due to the excellent technical values, our LUX models reproduce natural colors optimally, which really makes colors come alive! The products in our LIMENTE LUX collection are all granted with a three-year additional warranty in addition to our two-year warranty granted for all our products.

PROFIL LUX-IR includes an integrated IR switch. The light is activated with a wave of a hand. The fixture includes a matte protective glass diffuser, which makes the light even and continuous and makes the light a bit warmer in light color. All technical values are given to the fixture including the diffuser.

LIMENTE PROFIL LUX-IR is an excellent choice for kitchen workspaces as working light, in book shelves, inside wardrobes or on upper cabinets as indirect light. The end result is always spectacular!

Dimming and lightcontrol

LIMENTE PROFIL LUX-IR is not dimmable with separate dimmers. The fixture has an integrated on/off switch, which is activated with a wave of a hand.

Installation

LIMENTE PROFIL LUX-IR is fast and easy to install with the installation tools included. The fixture has an integrated IR switch, so no separate light switch is needed.

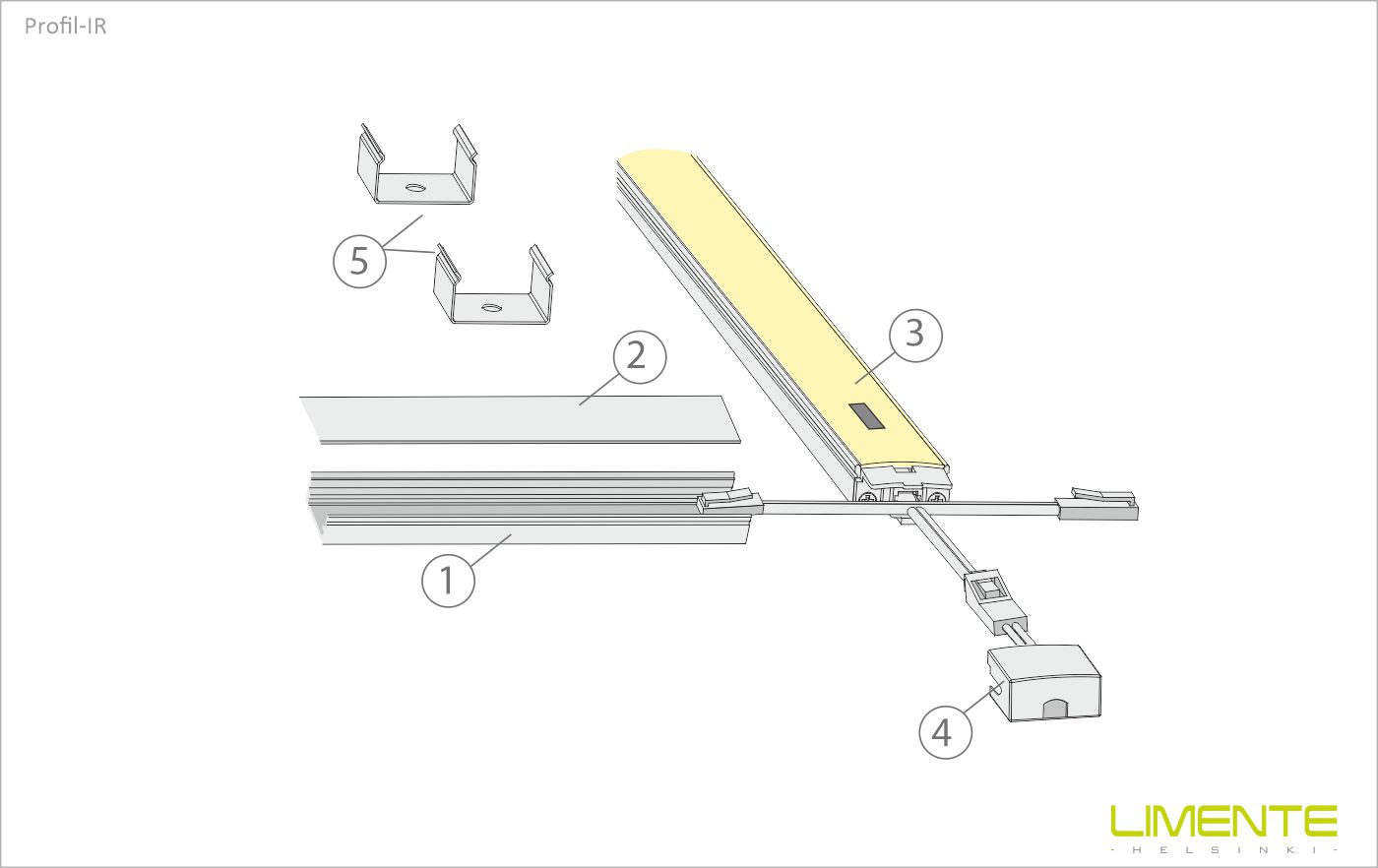

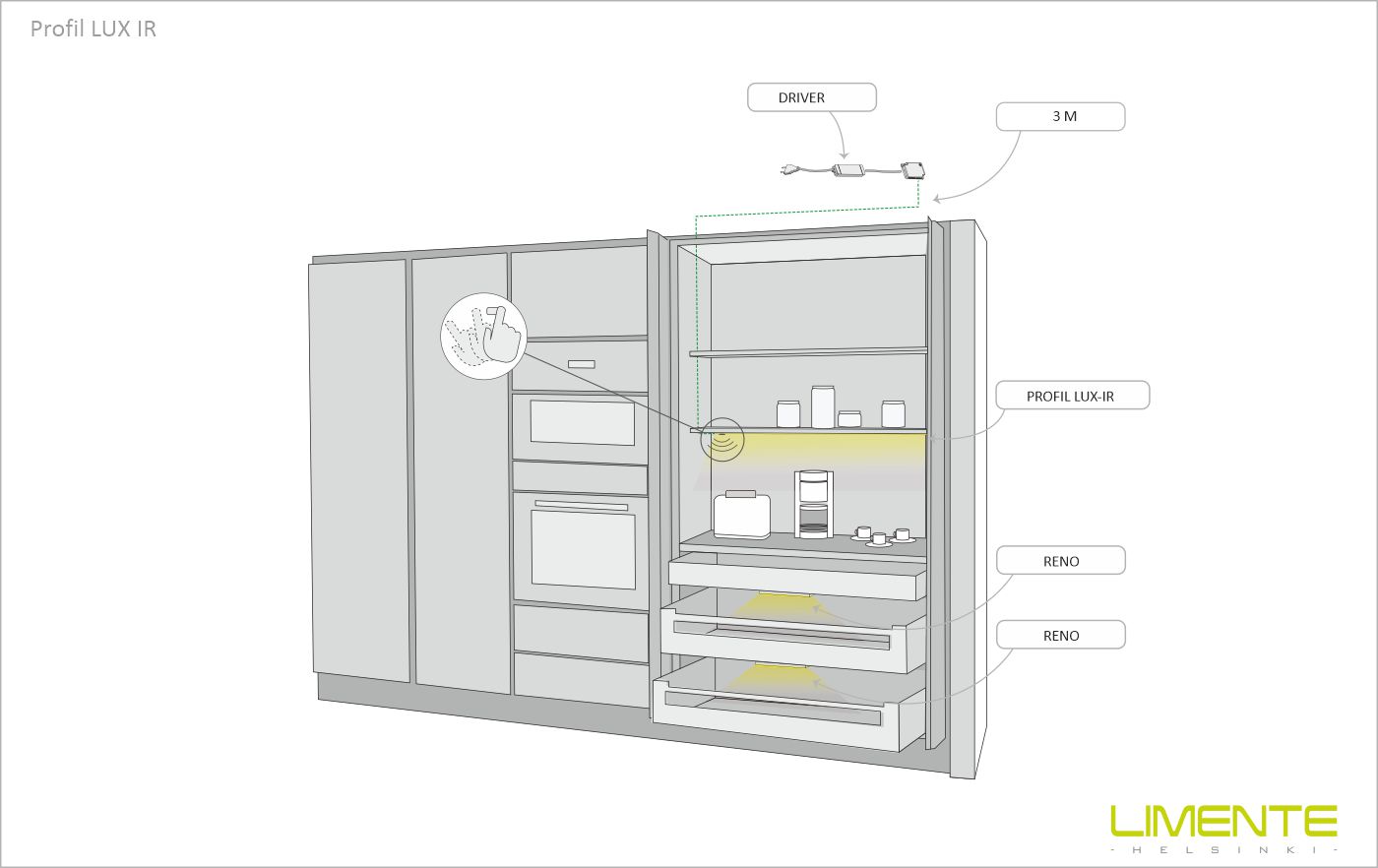

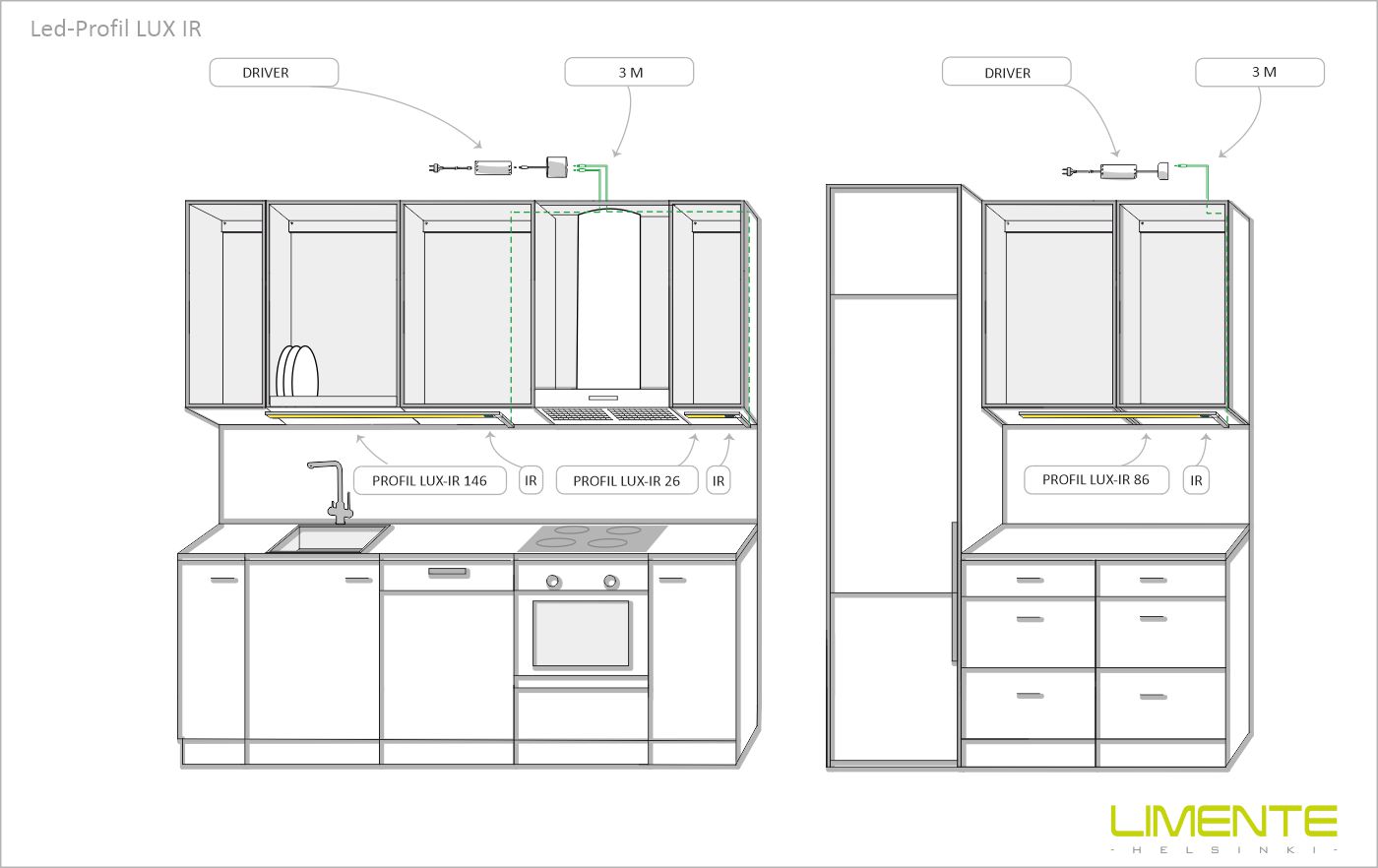

The power supply cable is put in place (e.g. hidden behind a cabinet) so that the male connector comes close to the power supply and the female connector comes near the PROFIL LUX fixture. The fixtures can be installed up to 60-80cm apart. The connected supply cable of the fixture can be routed in four directions. By default, it is directed downwards towards the surface to be installed (flush installation). By making a hole in one of the three pre-machined contours on the end piece, the cable can also be routed forward or to the sides as a surface installation.You can hide all the wiring inside a cable channel included, which gives a stylish finishing touch to your lighting design.

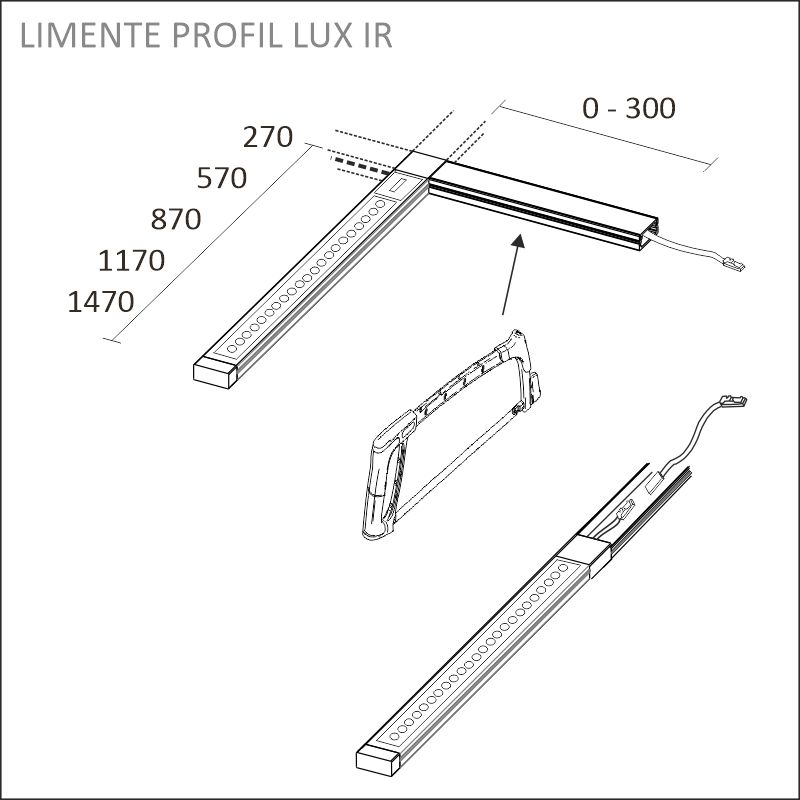

The fixture includes 30cm long cable channel for the power supply cable. The channel can be shortened to a desired length (the led profile is available in five standard lengths, which cannot be shortened). Both the cable channel and the PROFIL LUX fixture are secured in place with the attachment brackets included. Finally, connect the power supply cable to the light fixture and to the power supply. All electrical connections are done with quick connectors.

There is a 5cm + 300cm long power cord at the end of PROFIL LUX. An extension cord (3m, no. 681588) can be ordered, in case a longer power cord is needed. Extension cords can be fitted with a maximum on 1 pcs of fixtures, with a maximum cord length of up to 6m. Please note the adequate length of the cord and the maximum load (W) of the power supply.
