LIMENTE CORNER LUX 3000/4000 K, IP44, aluminium | 192 led/m, 1700 lm/m, CRI>90

A versatile corner profile

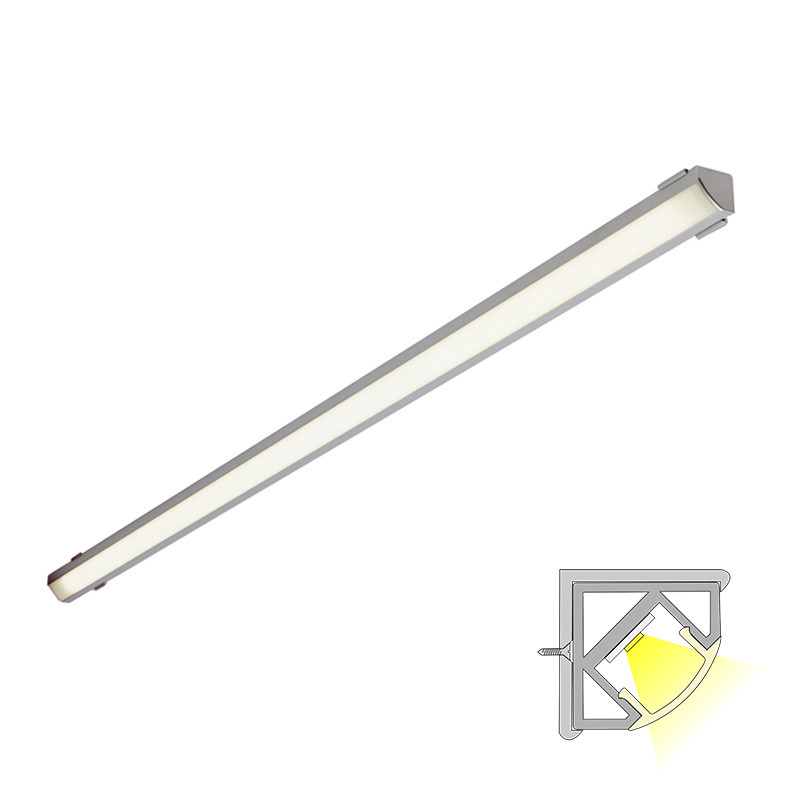

LIMENTE CORNER IP44 LUX is a part of LIMENTE LUX collection. The LIMENTE LUX collection provides the best quality of light in technical features, such as efficiency and color rendering, and maximizes the lifespan of the product. LIMENTE CORNER IP44 LUX is a versatile light fixture suitable for either working light or mood light. The fixture can be used in kitchen workspace but also to provide indirect lighting when placed above upper cabinets, in plinths, in ceilings or inside a wardrobe or any other space, where the fixture can be placed in a corner.

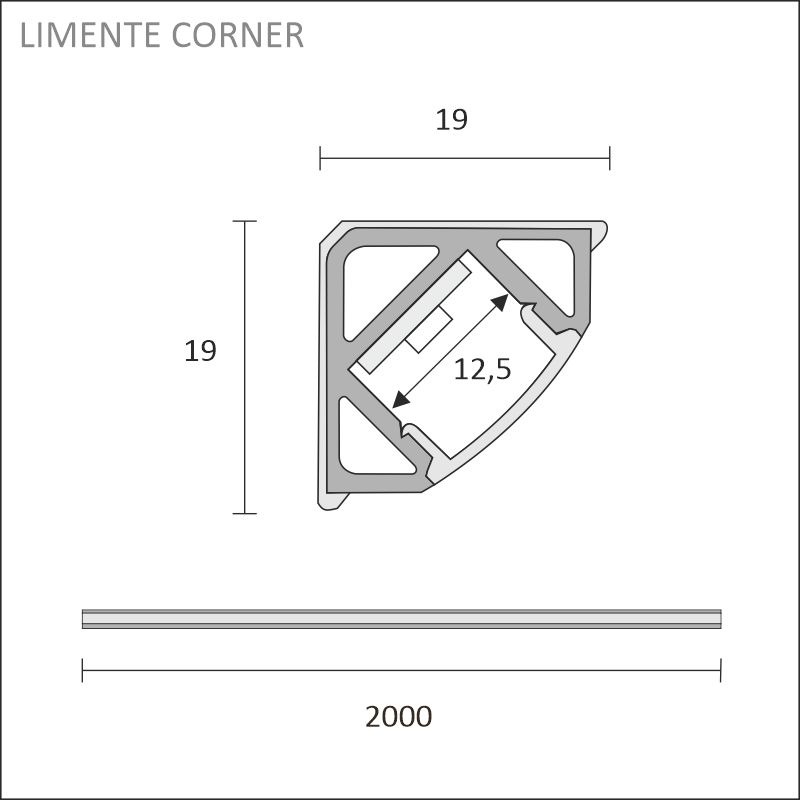

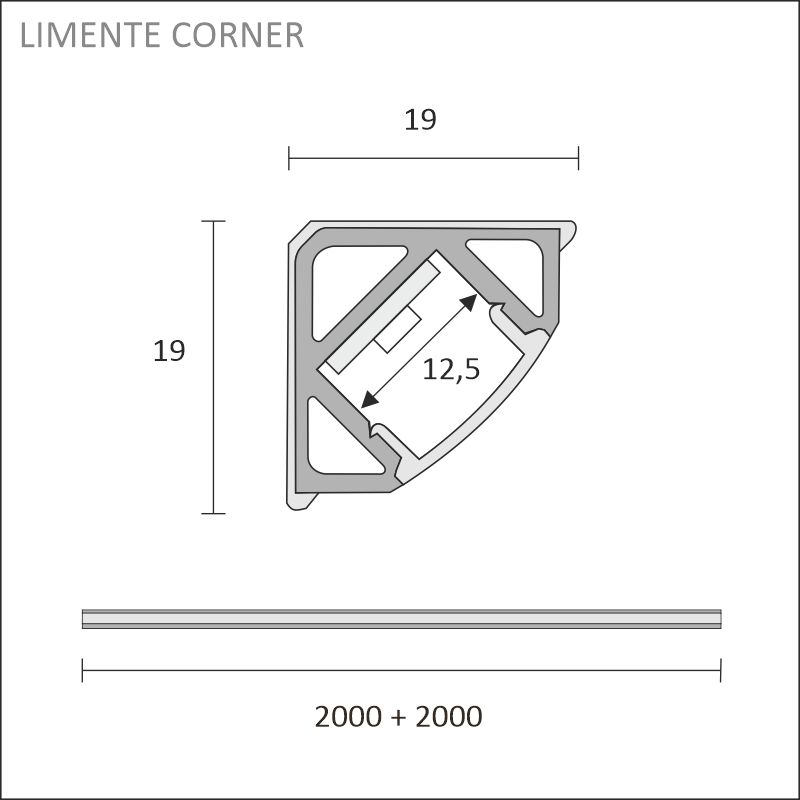

LIMENTE CORNER IP44 LUX is available in standard lengths of 2 and 4 meters. The fixture can be shortened to a desired length at 3,3 cm intervals. All the lights in our LIMENTE LUX collection have excellent LED efficiency (up to 135lm/w) and their color rendering is perfect (Ra>90). A light output of 1700 lm/m and a color temperature of 3000K or 4000K are standard in the LIMENTE LUX collection. Due to the excellent technical values, our LUX models reproduce natural colors optimally, which really makes colors come alive! The products in our LIMENTE LUX collection are all granted with a three-year additional warranty in addition to our two-year warranty granted for all our products.

In addition to LIMENTE CORNER IP44 LUX, LIMENTE CORNER is available in two different versions: the standard version LIMENTE CORNER IP44 (IP44, Ra>85, 4000K) and the color temperature adjustable CCT version LIMENTE CORNER IP44 CCT (IP44, Ra>80, 2700K-6000K).

To use LIMENTE CORNER IP44 LUX, you’ll need a suitable 24V power supply. Compatible products are mentioned alongside the product. The profile, the led strip and the power supply are also sold separately. N.B.! The power supply must be ordered separately.

Dimming and lightcontrol

Appropriate lighting for any occasion is made easy with our dimming and lighting control system. You can easily change the lighting and ambience in your home from efficient and bright to dim and cosy by dimming your LIMENTE CORNER with our wireless system. You can use the same switch to adjust all the LIMENTE lights in the room, including various ceiling, panel and profile lights. The light adjusts smoothly at the same time while creating ambience for working, entertaining or any mood in between.

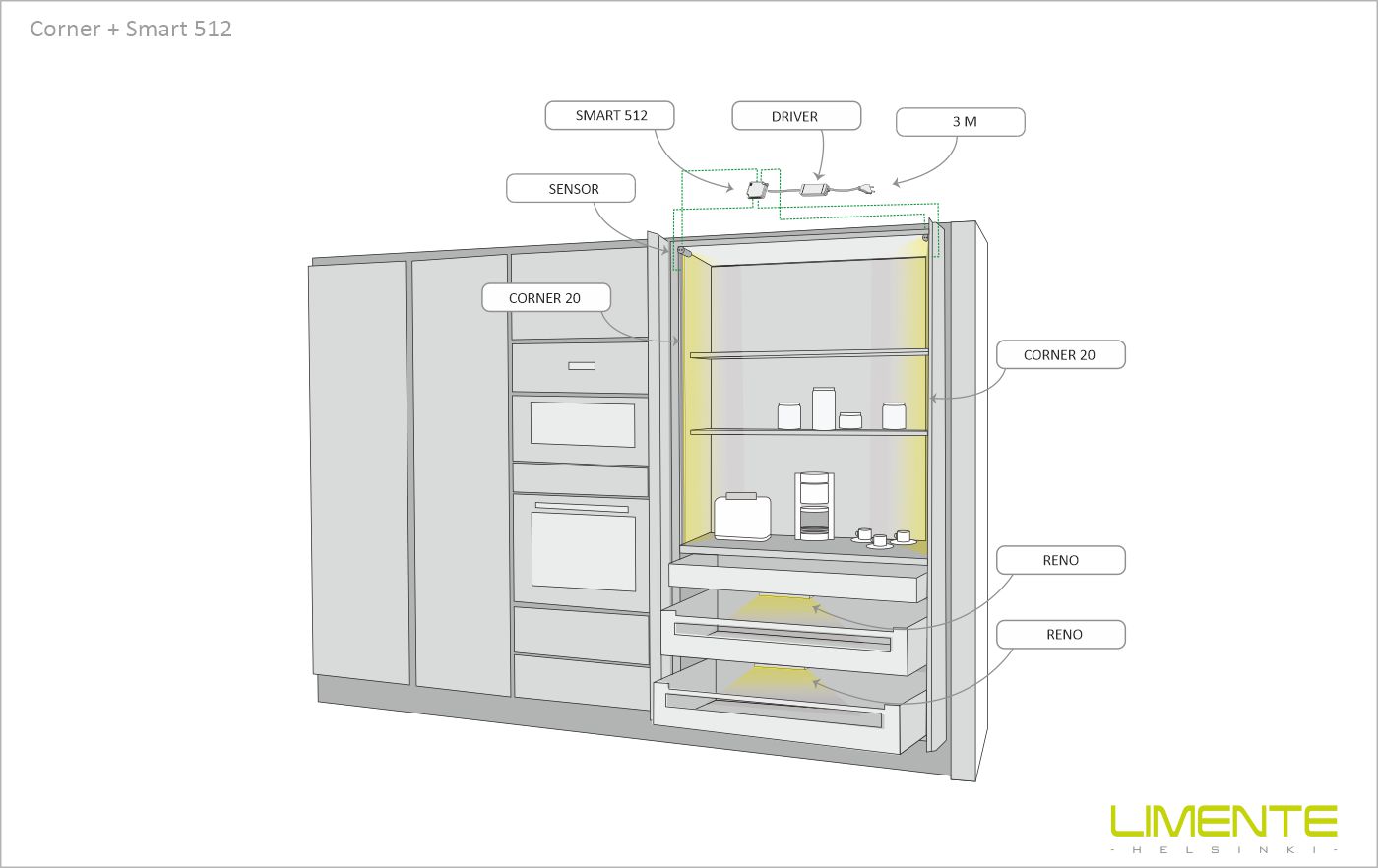

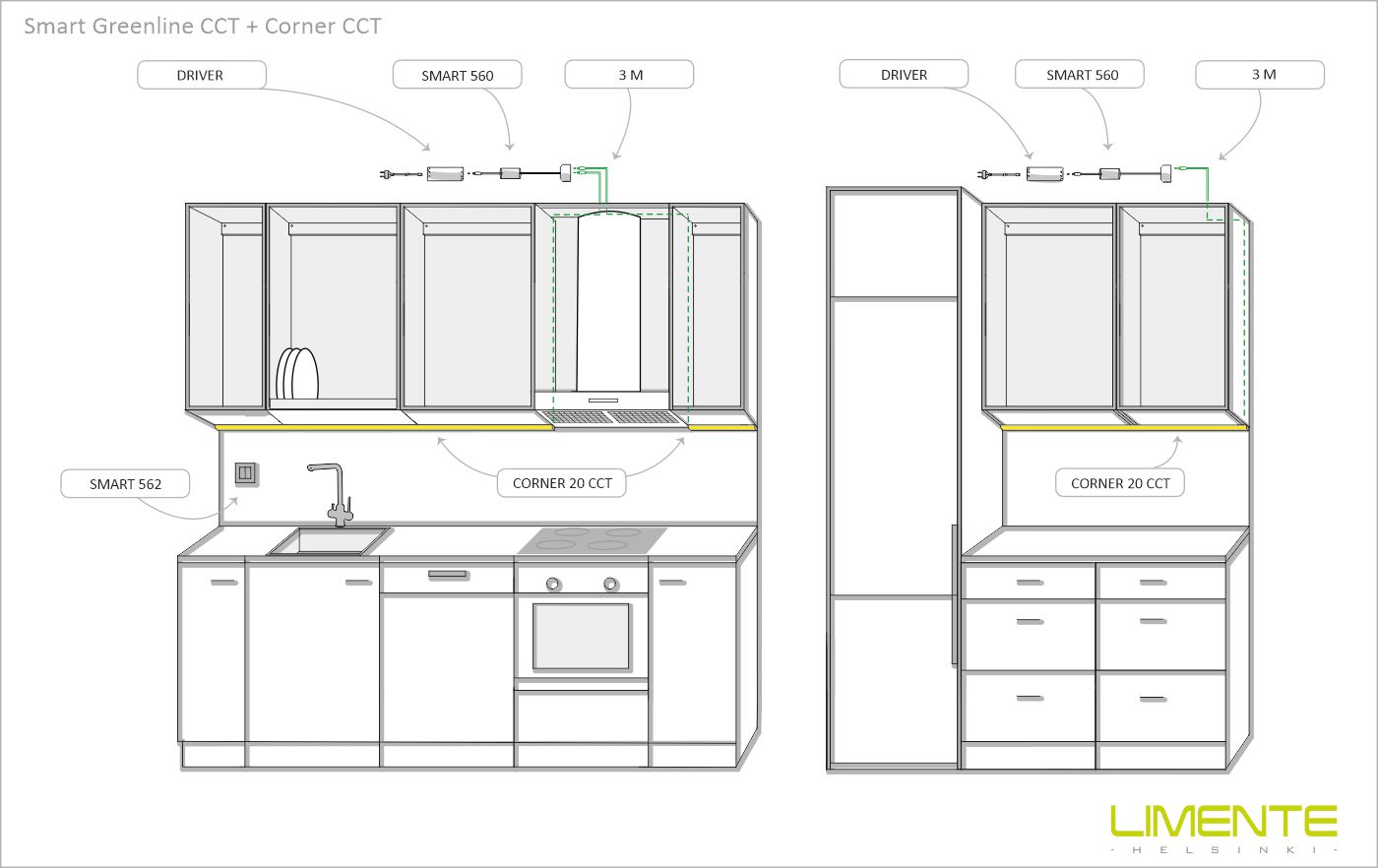

LIMENTE CORNER LUX is dimmable either with LIMENTE SMART CLASSIC, LUXUS ja GREENLINE series 24V dimmer (no. 640540) and wireless wall switches (no. 640541, 640542, 640544, 640546 and 640547). The dimmer is installed between the power supply and the fixture. The dimmer includes a similar manifold to the one included in the power supply. You can connect up to 6 LIMENTE lights to one dimmer, as long as the maximum load (W) of the power supply is not exceeded.

LIMENTE CORNER LUX is also dimmable with a Dali driver (LEDDALI100). The driver is controlled by either a 240 V Dali controller or a push button switch, utilizing the "Push Dim" function.

Installation

LIMENTE CORNER IP44 LUX is fast and easy to install with the installation tools included.

The power supply cable is put in place (e.g. hidden behind a cabinet) so that the male connector comes close to the power supply and the female connector comes near the CORNER profile. A power supply cable at both ends of the fixture enables CORNER IP44 LUX to be used as two separate lights. The fixture can be shortened to a desired length at 3,3 cm intervals. There is a 5cm + 300cm long power cord at each end of the fixture. An extension cord (3m, no. 681588) can be ordered, in case a longer power cord is needed. Extension cords can be fitted with a maximum on 1 pcs of fixtures, with a maximum cord length of up to 6m. Please note the adequate length of the cord and the maximum load (W) of the power supply.

CORNER IP44 LUX can also be used in its full length (2 or 4 m). When wanting to use the whole length, simply cut off the power supply cable at the other end.

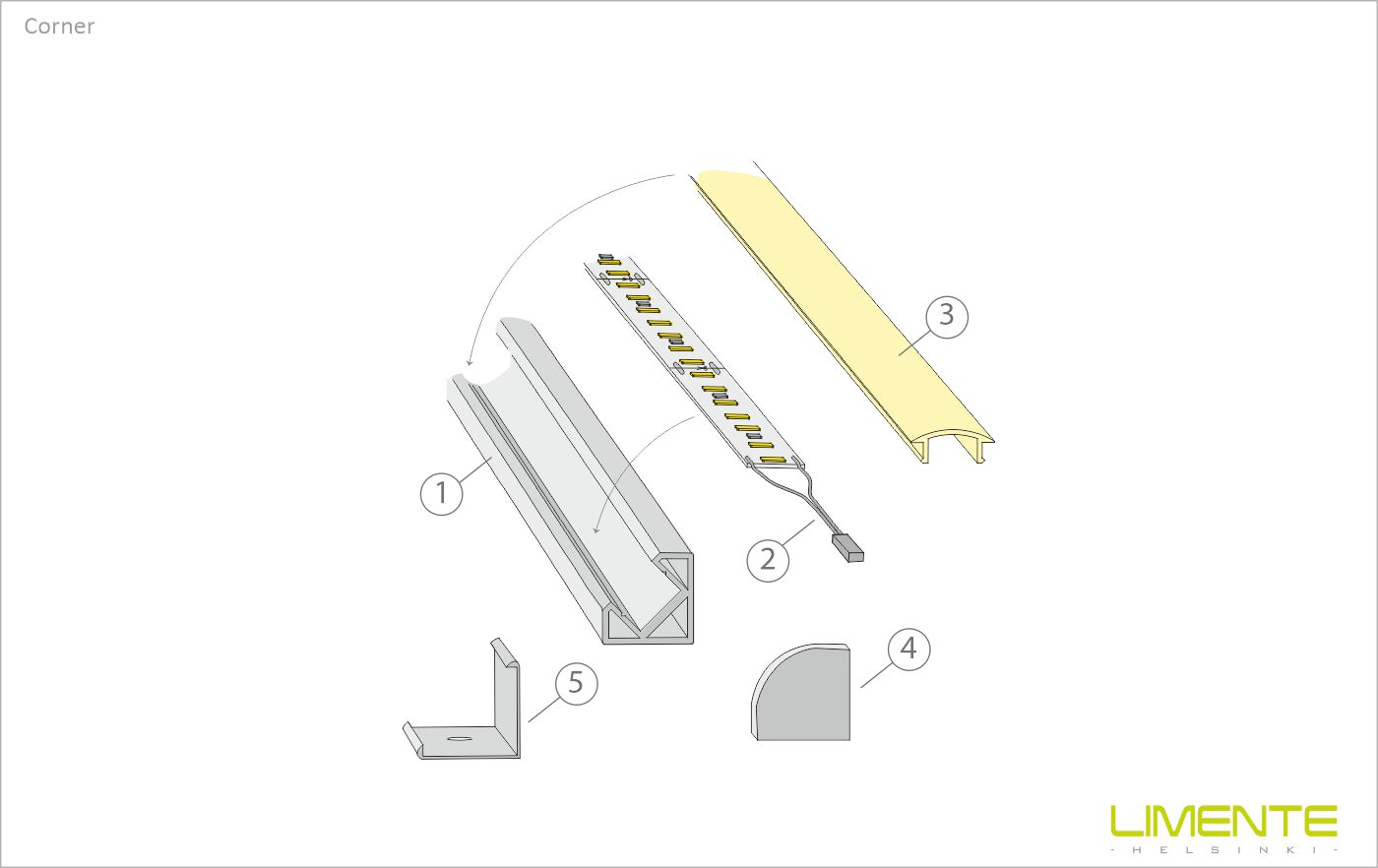

When installing, cut the profile into the desired length and attach in place with the installation tools and clips included. Remove the double-sided tape from the light strip and press onto the profile. Finally, connect the power supply cable to the light strip and to the power supply. All electrical connections are done with quick connectors.
