LIMENTE 892 Floor socket | 2 x Shuko / 1 x Shuko + RJ45 / 1 x Shuko + TV-SAT-R

Floorsocket 892

Limente floor sockets offer a stylish and timeless solution for distributing electricity, data, and antenna signals in all kinds of locations. Floor sockets are particularly convenient in car dealerships, supermarkets, stores, offices, commercial spaces, ships, and even in homes around kitchen islands. The washable and drive-over sockets are especially suitable for larger open spaces such as hypermarkets, car dealerships, cafes, and restaurant customer areas. Sockets intended for dry indoor installations are designed for offices and meeting or office spaces.

All Limente floor sockets are made with either aluminum or stainless steel frames, and their covers can be metal or the same material as the floor (carpet, wood, stone, laminate, parquet, etc.)

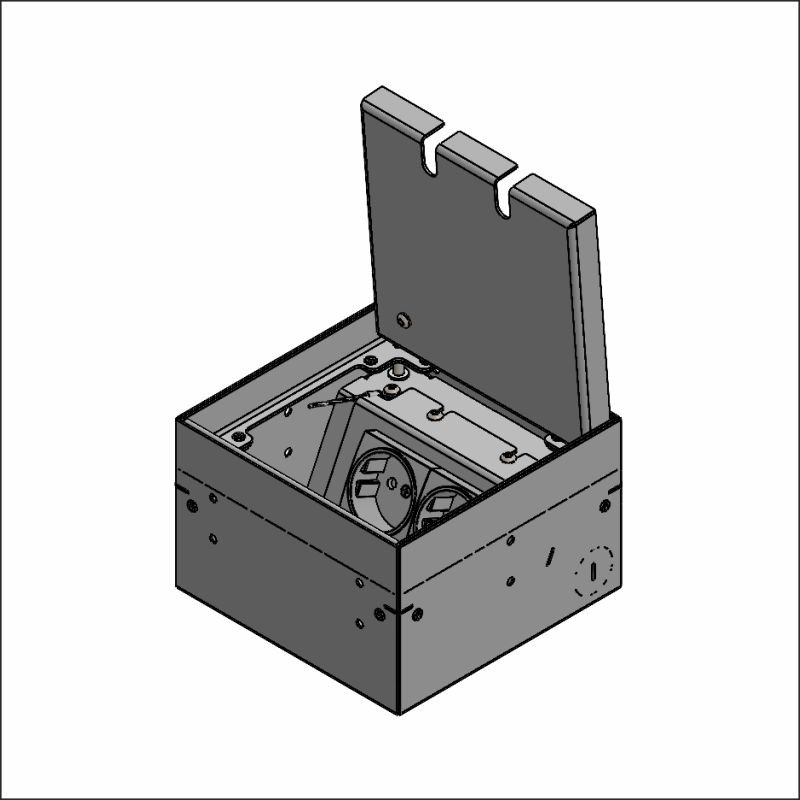

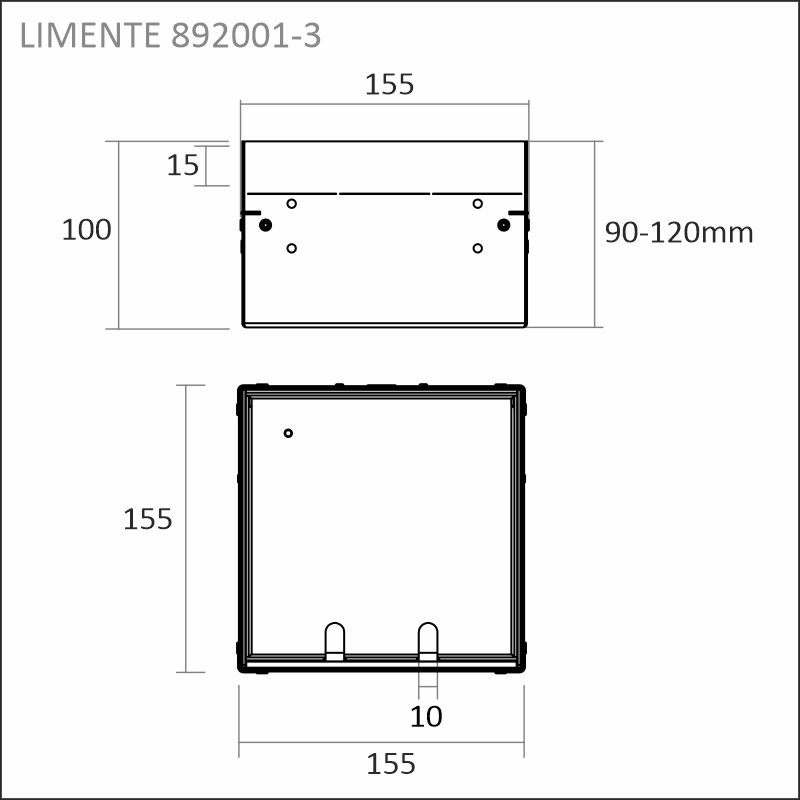

The sockets of the 892 series are floor sockets equipped with a removable hinged cover. The frame on the socket cover has a recess for flooring material up to 15 mm thick (e.g., carpet/laminate).

Socket content options

A socket can be equipped as follows (other connectors are available on special order):

- with two Shuko sockets (240V, 16A)

- with one Shuko socket and one dual RJ45 connector (CAT6A)

- with one Shuko socket and one TV-SAT-R connector (SAT 950-2400 MHz)

Installation and Electrical Connection

The socket is installed as part of the floor by installing it into the floor casting. For this purpose, a separately sold leveling system (product number 680825) can be utilized, which allows the socket to be set at the desired height in 20mm increments.

The socket has six 26mm through holes for the feed cable. The IP rating of IP20 for the socket requires that the through holes use sleeve seals with at least an IP20 rating or otherwise seal the through holes tightly.
