LIMENTE 892 brush brush | 2 x Shuko / 1 x Shuko + RJ45 / 1 x Shuko + TV-SAT-R / 2 x Shuko + 2 x RJ45 single

Floorsocket 892HARJA

Limente floor sockets offer a stylish and timeless solution for distributing electricity, data, and antenna signals in all kinds of locations. Floor sockets are particularly convenient in car dealerships, supermarkets, stores, offices, commercial spaces, ships, and even in homes around kitchen islands. The washable and drive-over sockets are especially suitable for larger open spaces such as hypermarkets, car dealerships, cafes, and restaurant customer areas. Sockets intended for dry indoor installations are designed for offices and meeting or office spaces.

All Limente floor sockets are made with either aluminum or stainless steel frames, and their covers can be metal or the same material as the floor (carpet, wood, stone, laminate, parquet, etc.)

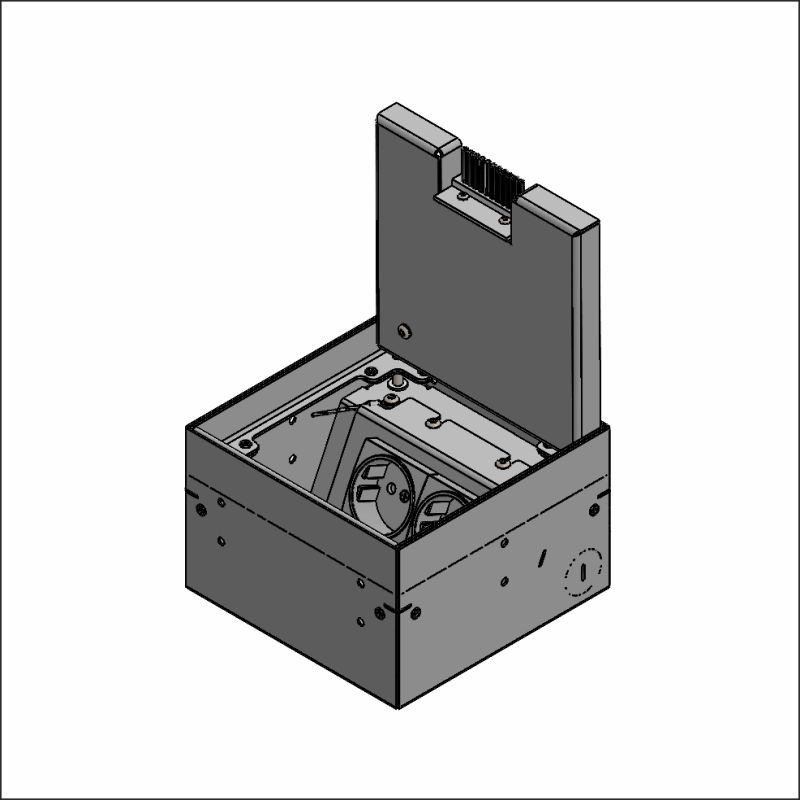

The sockets of the 892HARJA series are floor sockets equipped with a removable hinged cover and a cable brush for the cables of connected devices. The frame on the socket cover has a recess for flooring material up to 15 mm thick (e.g., carpet/laminate).

Socket content options

A socket can be equipped as follows (other connectors are available on special order):

- with two Shuko sockets (240V, 16A)

- with one Shuko socket and one dual RJ45 connector (CAT6A)

- with one Shuko socket and one TV-SAT-R connector (SAT 950-2400 MHz)

- with two Shuko sockets (240V, 16A) and one dual RJ45 connector (CAT6A)

Installation and Electrical Connection

The socket is installed as part of the floor by embedding it into the concrete floor. For this purpose, a separately sold leveling system (product number 680825) can be used to adjust the socket to the desired height in 20mm increments.

The socket has six 26mm entry holes for the supply cable. The socket's IP rating of IP10 requires that the entries use sleeve seals with at least an IP10 rating or are otherwise sealed tightly.
